The servo press fitting system, abbreviated as servo press (commonly known in the market as servo press, servo pressing system, servo press machine), is a CNC press unit that integrates assembly and measurement, and is the core component for achieving “digital assembly”.
The P series servo press is suitable for application scenarios with long-term pressure holding, strict process requirements, and effective monitoring of force and displacement, force and time during the process, such as materials forming, hydrogen fuel cell stack pressing, etc.
♦ Pressure Accuracy≤ 1%FS，Position accuracy≤ 0.01mm.
♦ Integrated detection of force and displacement
♦ Control over force, displacement, or external signals, etc.
♦ 100% real-time detection of each pressing process
♦ Measurement data and assembly results can interact with PLC and servers to meet the traceability requirements of process data.
♦ Plentiful built-in detection programs which can meet all pressing requirements
♦ Pressure holding time: unlimited
♦ Suitable for application scenarios with long-term pressure holding, strict process requirements, and effective monitoring of force and displacement, force and time during the process, such as materials forming, hydrogen fuel cell stack pressing, etc.
The data acquisition frequency is 20KHZ, the acquisition accuracy is 24bit, and it can store more than 5 million press fitting curves. E-press industrial software supports secondary development.
Compared to traditional hydraulic systems, it saves up to 80% of costs, making the production costs lower.
Maintenance-free design, the service life is over 12 million times.
Modularity design, this system consists of five parts: servo cylinder, E-Press industrial software, control box, monitoring instrument, and cable module. The control box realizes the operation control of the servo motor and the collection of pressure data, and E-Press industrial software has a built-in standard database, which can complete real-time display of force and displacement curves, window judgment, and envelope detection. Measurement data and assembly results can interact with PLC and servers to meet the traceability requirements of process data. The E-Join servo press system can be flexibly integrated into various control systems, and one monitor can monitor the simultaneous operation of multiple sets of servo cylinders.

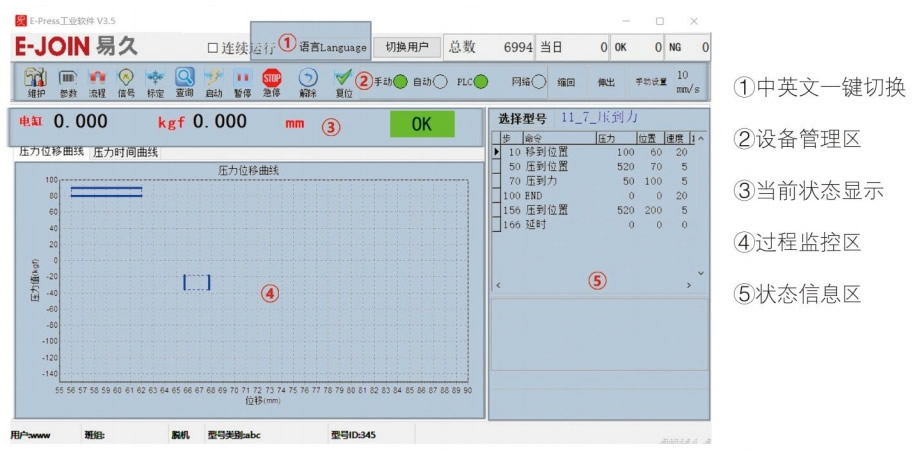

Based on the windows platform, the software realizes the program of the press fitting process flow, the real-time display of pressure displacement curve and pressure time curve, and the simultaneous display of multiple press fitting steps and multiple press fitting curves of a work piece. It supports evaluation functions such as judgment windows, envelope curves, and measurements, etc., outputs OKING results, can set different permissions by using hierarchical user management, and its press fitting history records, operation logs, and alarm logs are easy to query. E-Press industrial software supports mainstream database formats such as MS SQL and ACCESS.
·E-Press industrial software - convenient and intuitive operating software

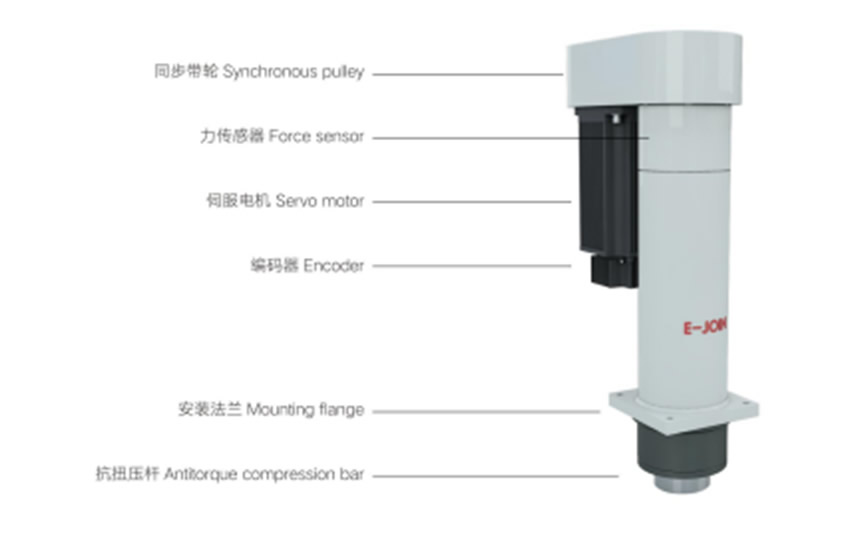

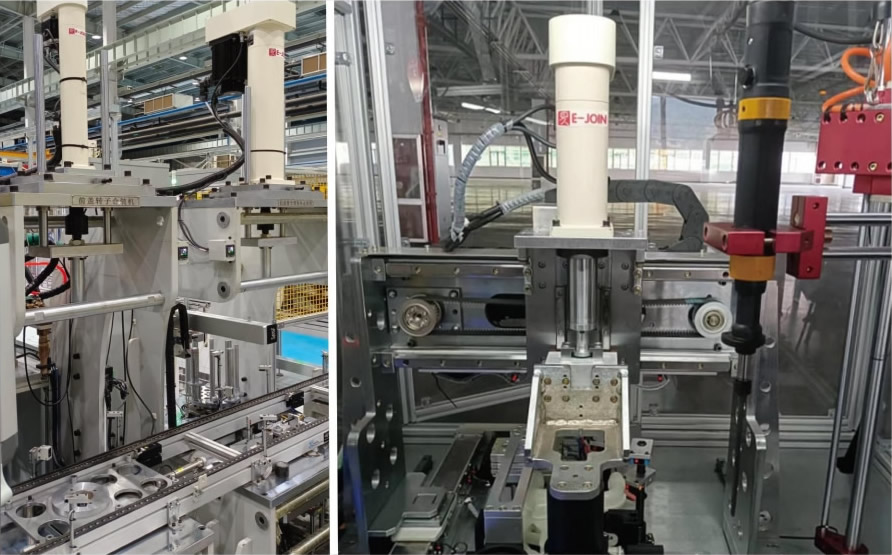

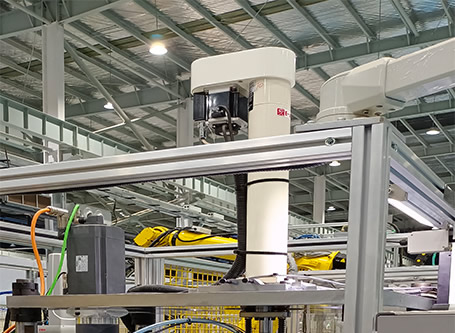

| ●高强度机械结构设计，确保长时间使用 | ●原点定位和限位都是自有系统完成 |
| ●压力传感器内置 | ●抗扭压杆，可以直接安装压头工装 |
|
规格Specification |
行程 (mm)Distance |
最大压力(KN)Maximumpressure |
运行速度(mm/s)Running speed |
压力精度Control accuracy offorce |
位置精度(mm)Position accuracy |
|
5KN |
100-200 |
5 |
0.02~1300 |
1%FS |
0.01 |
|
10KN |
100-400 |
10 |
0.02~125 |
1%FS |
0.01 |
|
30KN |
200-400 |
30 |
0.02~100 |
1%FS |
0.01 |
|
50KN |
200-400 |
50 |
0.02~100 |
1%FS |
0.01 |
|
100KN |
300-400 |
100 |
0.02~90 |
1%FS |
0.01 |
|
200KN |
300-400 |
200 |
0.02~60 |
1%FS |
0.01 |

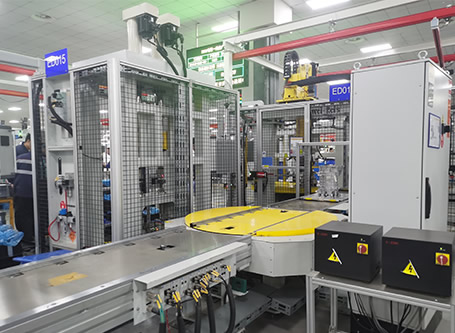

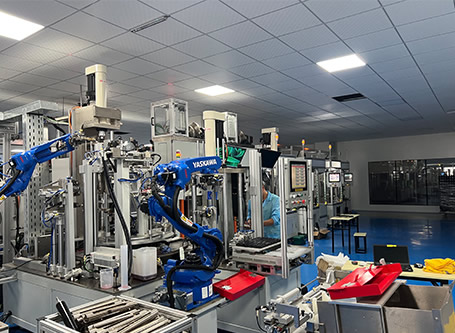

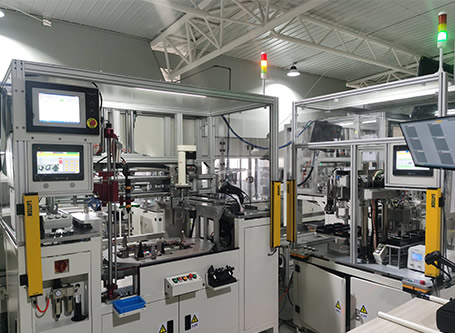

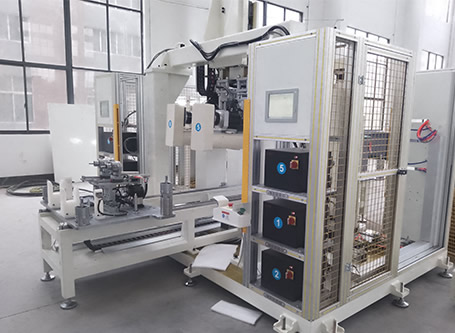

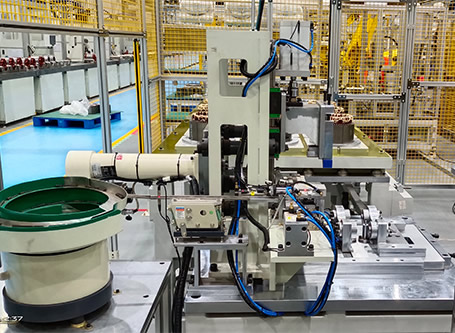

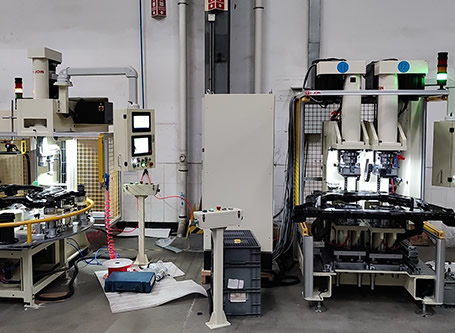

If you need to learn more about the product, please feel free to submit your information to contact us.
