The servo press fitting system, abbreviated as servo press (commonly known in the market as servo press, servo pressing system, servo press machine), is a CNC press unit that integrates assembly and measurement, and is the core component for achieving “digital assembly”.
♦ Pressure Accuracy≤ 1%FS，Position accuracy≤ 0.01mm.
♦ Integrated detection of force and displacement
♦ Control over force, displacement, or external signals, etc.
♦ 100% real-time detection of each pressing process
♦ Measurement data and assembly results can interact with PLC and servers to meet the traceability requirements of process data.
♦ Plentiful built-in detection programs which can meet all pressing requirements
♦ The range of force is from less than 2KN to over 350KN.

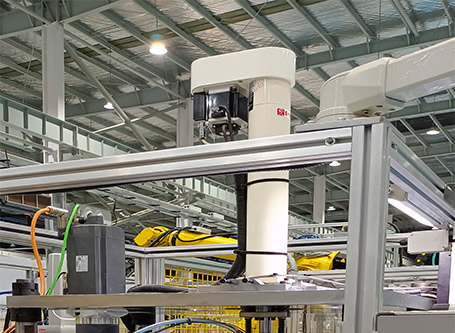

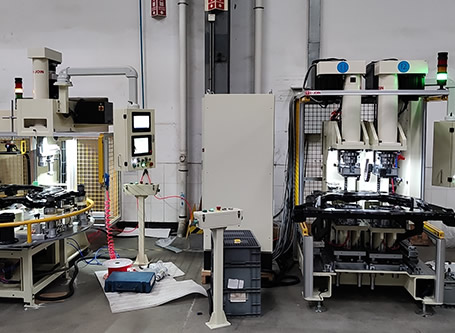

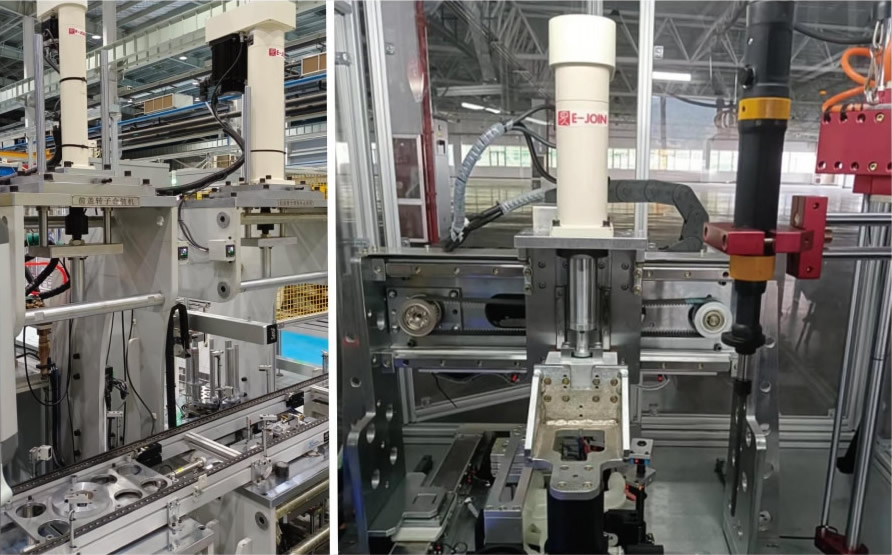

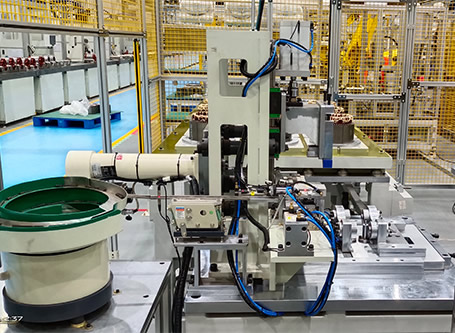

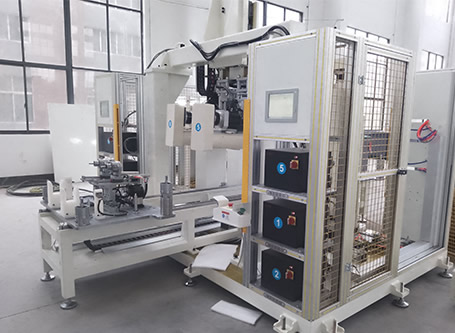

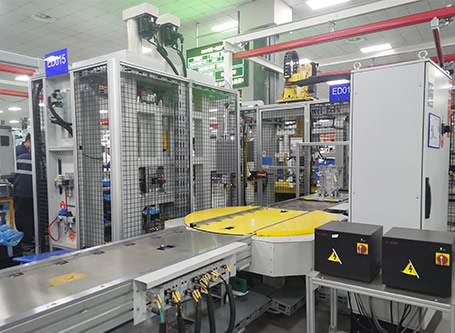

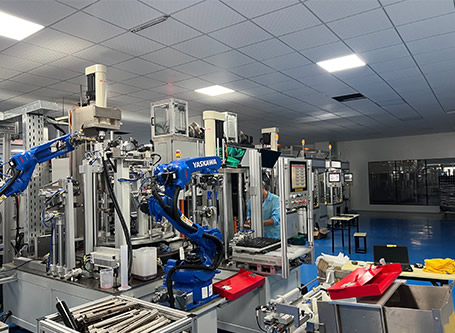

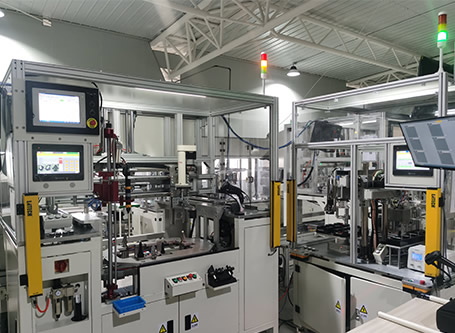

♦ Suitable for all occasions with strict requirements on the process, such as pressing, forming, riveting, punching, elasticity testing and other high rhythm, high-precision assembly applications.
The data acquisition frequency is 20KHZ, the acquisition accuracy is 24bit, and it can store more than 5 million press fitting curves. E-press industrial software supports secondary development.
Compared to traditional hydraulic systems, it saves up to 80% of costs, making the production costs lower.
Maintenance-free design, the service life is over 12 million times.

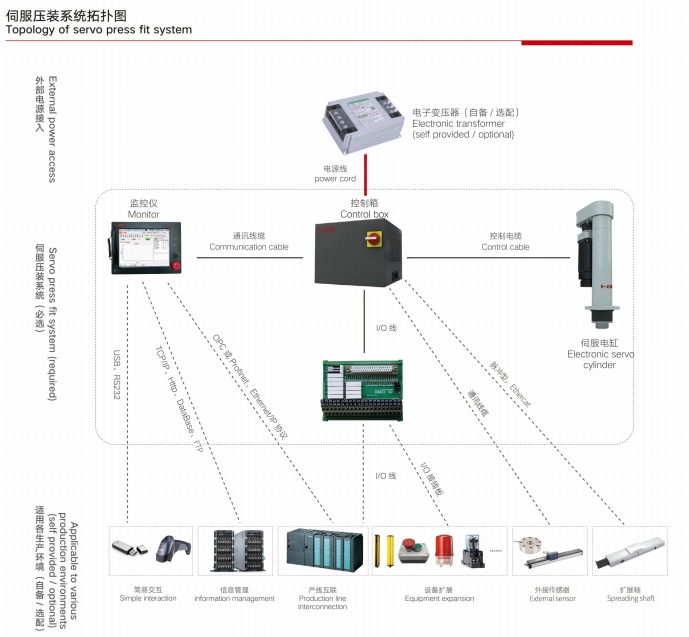

Modularity design, this system consists of five parts: servo cylinder, E-Press industrial software, control box, monitoring instrument, and cable module. The control box realizes the operation control of the servo motor and the collection of pressure data, and E-Press industrial software has a built-in standard database, which can complete real-time display of force and displacement curves, window judgment, and envelope detection. Measurement data and assembly results can interact with PLC and servers to meet the traceability requirements of process data. The E-Join servo press system can be flexibly integrated into various control systems, and one monitor can monitor the simultaneous operation of multiple sets of servo cylinders.

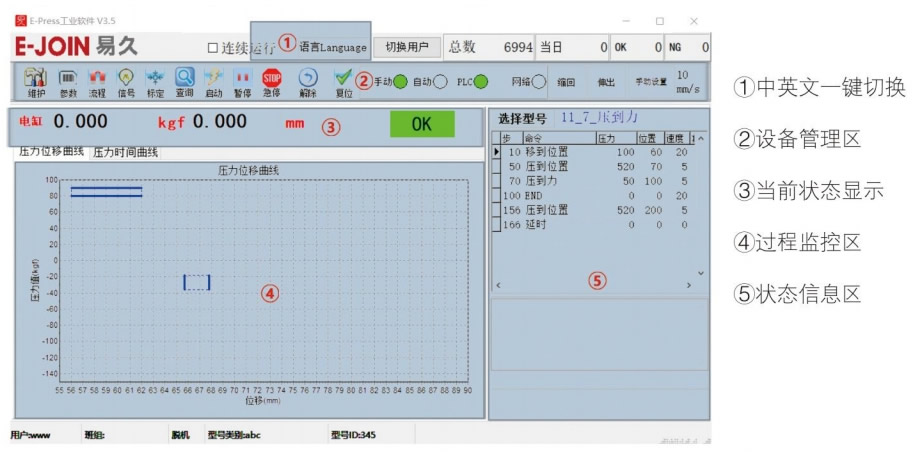

Based on the windows platform, the software realizes the program of the press fitting process flow, the real-time display of pressure displacement curve and pressure time curve, and the simultaneous display of multiple press fitting steps and multiple press fitting curves of a work piece. It supports evaluation functions such as judgment windows, envelope curves, and measurements, etc., outputs OKING results, can set different permissions by using hierarchical user management, and its press fitting history records, operation logs, and alarm logs are easy to query. E-Press industrial software supports mainstream database formats such as MS SQL and ACCESS.
·E-Press industrial software - convenient and intuitive operating software

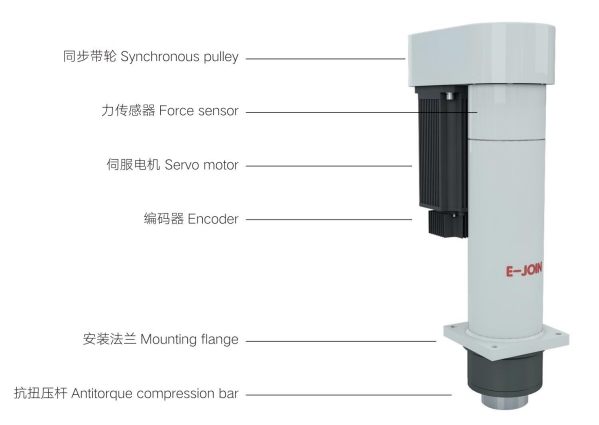

| ●High strength mechanical structure design ensures long-term use | ●Both origin location and position limit are completed by its own system |
| ●Built-in pressure sensor | ●Anti-torsion press rod, can be directly installed with press head tooling |
|
规格Specification |
行程 (mm)Distance |
最大压力(KN)Maximumpressure |
运行速度(mm/s)Running speed |
压力精度Control accuracy offorce |
位置精度(mm)Position accuracy |
|
2KN |
100-200 |
2 |
0.02~260 |
1%FS |
0.01 |
|
5KN |
100-200 |
5 |
0.02-260 |
1%FS |
0.01 |
|
10KN |
100-400 |
10 |
0.02-250 |
1%FS |
0.01 |
|
20KN |
100-400 |
20 |
0.02~125 |
1%FS |
0.01 |
|
30KN |
200-400 |
30 |
0.02-200 |
1%FS |
0.01 |
|
50KN |
200-400 |
50 |
0.02~200 |
1%FS |
0.01 |
|
8OKN |
300-400 |
80 |
0.02~160 |
1%FS |
0.01 |
|
100KN |
300-400 |
100 |
0.02~140 |
1%FS |
0.01 |
|
150KN |
200-400 |
150 |
0.02-140 |
1%FS |
0.01 |
|
200KN |
200-400 |
200 |
0.02-100 |
1%FS |
0.01 |
|
350KN |
200-400 |
350 |
0.02-50 |
1%FS |
0.01 |
If you need to learn more about the product, please feel free to submit your information to contact us.
