Centering module

The device is used for guiding the angle and position of the tools in interference assembly.
The internal elastic mechanism can undergo angular or translational movement under the action of assembly chamfering, and can be reset after press fitting is completed.

Data download

Product function

Improve the one-time assembly qualification rate, shorten the equipment adjustment cycle, and extend the service life of production equipment and tools.
Application background

Due to products, equipment, tooling, and other factors, it cannot be guaranteed that the parts are coaxial with the center of the pressing hole, which can easily cause scratches, extrusion deformation, wear, and other phenomena during the process of press fitting.
Application scenarios

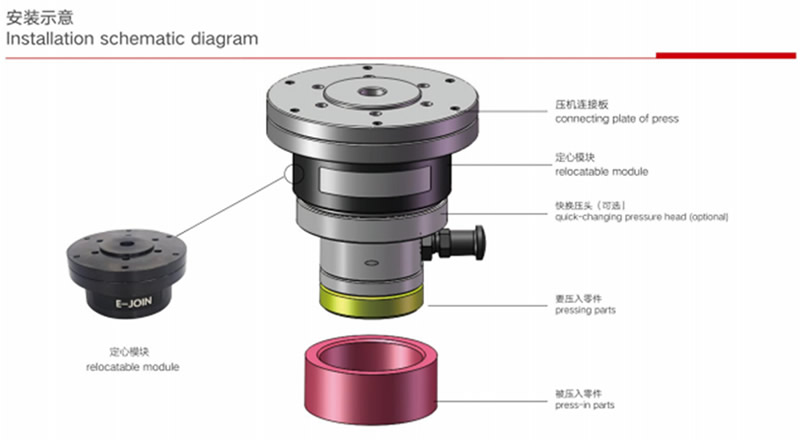

For precision press fitting of bearings, oil seals, bushings, etc., can be used in conjunction with the E-Join servo press fitting system, and the mounting hole is compatible with the servo cylinder.

Technical Parameters

Name	Model	Description
10KN Angular floating module	EACM-10	Vertical use, can be installed on the pressing head or on the lower tooling
30KN Angular floating module	EACM-30
50KN Angular floating module	EACM-50
100KN Angular floating module	EACM-100
10KN Omnidirectional floating module	EOCM-10	Vertical use, can be installed on the pressing head or on the lower tooling
30KN Omnidirectional floating module	EOCM-30
50KN Omnidirectional floating module	EOCM-50
100KN Omnidirectional floating module	EOCM-100

Note: The angular floating module can only perform angle offset, while the omnidirectional floating module can perform both angle offset and horizontal offset.
